Ka to Ku Band Mini Up/Down Converter

Model: FC1000

Extremely small and lightweight · 3.3 V RS-232 control

Ka to Ku Band Mini Up/Down Converter
  • ISO 9001:2015
  • IPC-A-610 Class 3
  • ITAR Registered

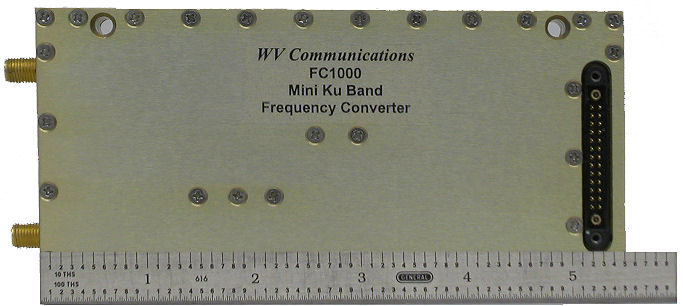

The FC1000 is an extremely small and lightweight Ka band to Ku band mini microwave up/down converter.

Communications Protocol

  • 3.3 Volt RS-232

Specifications

Rx DC Voltage and Current
5.6 V at 100 mA; 7.6 V at 150 mA
Tx DC Voltage and Current
5.6 V to 7.6 V at 800 mA (1 W unit); 5.6 V to 7.6 V at 1.4 A (2 W unit)
CPU Sleep Mode Current
0.5 mA

Resources

FC1000 1W KU Band VSAT Up/Down Converter FC1001 2W KU Band VSAT Up/Down Converter FC1002 1W KA Band Up/Down Converter

Custom Configurations

The Ka to Ku Band Mini Up/Down Converter can be configured to your program’s requirements. Tell us the application’s needs and an engineer will follow up directly.
