Flight Termination Systems

Model Number Shown:

EX2001 Series

Quad Mode Flight Termination Exciter supports EFTS, IRIG, FSK and High Alpha formats
  • Quad-Mode: EFTS, IRIG, FSK and High Alpha
  • Dependable
  • Versatile
  • Quickly & easily configurable
Exciter Model EX2001
Click Image to Enlarge

EXCITER/ENCODER

Features
  • Select encoding mode (EFTS, IRIG, FSK and High Alpha) by a single remote command or push of a soft key button
  • Main functions adjustable via Touch screen or Ethernet
  • Tone Frequency stability ±0.01% Maximum
  • RF Carrier output power adjustable from -5 to +10dBm in 0.5dB steps (0 to -127dBm and 20W Options available)
  • RF Carrier stability within ±0.0005% (±5PPM) Maximum
  • Frequency range 370.0-450.0MHz
  • 1.0 kHz frequency steps
  • Remote Communications Protocol : Ethernet UDP/IP, USB
  • International Autoselect AC mains Input Voltage 110/220VAC
  • SETTINGS:
    • Set RF Carrier Frequency
    • Set RF Carrier output level
    • Set Tone Deviation
    • Select Mode EFTS, IRIG, FSK, High Alpha
  • COMMANDS:
    • Tri-color buttons to quickly show commands that have been defined, not defined, or currently being transmitted
  • TONES:
    • Display is used to select individual tones and display which tones are currently being transmitted.
Options (Partial list, call factory for complete details)
  • Carrier Low Power 0 to -127dBm, High Power +43dBm (20W) Versions
  • Carrier Frequency Range Options available 370.0-450.0MHz
  • Carrier Frequency Steps Options available 1.0, 5.0, 10.0, 25.0, 50.0, 100.0kHz
  • Any combination of Flight Termination formats; EFTS, IRIG, FSK, High Alpha<
  • Optional Standard TTL Discrete Tones or Commands Input/Output Any Polarity
Specification Sheet Downloads

Model Number Shown:

EX1019 Series

  • IRIG
  • 5/200 Watt Output
  • Command Switches with Guard Covers
  • A 5.7 inch TFT LCD with improved image and contrast

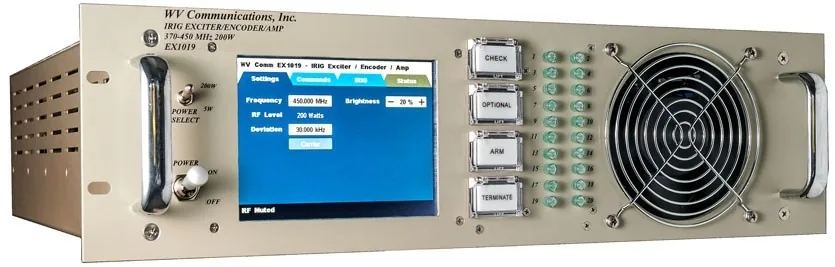

Exciter Model EX1019
Click Image to Enlarge
Features
  • Tone Outputs: IRIG
  • Main functions adjustable via Touch screen , Command Switches, USB Serial, or Ethernet
  • Tone stability ±0.001% Maximum
  • RF output power adjustable to 200 Watts Maximum in 1dB Steps
  • Carrier stability within ±0.0005% (±5PPM) Maximum
  • RF Frequency Range 370.0-450.0 MHz
  • 100.0 kHz frequency steps, Smaller Carrier frequency Steps Optional
  • Remote Communications Protocol:  Ethernet Standard UDP/IP and USB Serial
  • Firmware option that provides redundant capability between two units; no additional hardware required
Specification Sheet Downloads

Model Number Shown:

EX1004 Series

  • IRIG
  • Versatile
  • Quickly & easily configurable

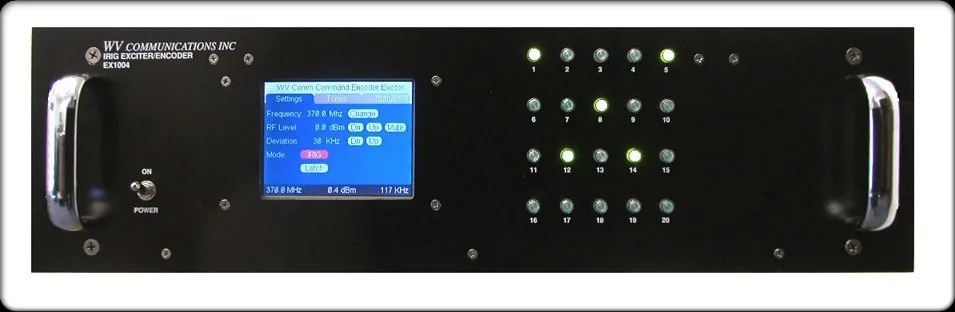

Exciter Model EX1004
Click Image to Enlarge
Features
  • Tone Outputs: IRIG
  • Main functions adjustable via Touch screen , RS-232, or Ethernet
  • Tone stability ±0.001% Maximum
  • RF output power adjustable from -5 to +10dBm in 0.5dB steps (See Model EX1004-002 0 to -127dBm in 1dB Steps)
  • Carrier stability within ±0.0005% (±5PPM) Maximum
  • RF Frequency Range 370.0-450.0 MHz
  • 100.0 kHz frequency steps, Smaller Carrier frequency Steps Optional (See Model EX1004-002 5.0kHz Steps)
  • Remote Communications Protocol:  Ethernet Standard and RS-232/422
Options  (Partial list, call factory for complete details)
  • Tone Outputs: EFTS, Secure (High Alpha) or Both
  • Output tones composite and Discrete TTL / or Command Messages Discrete TTL Output
  • Smaller Carrier Frequency Step See Model Ex1004-002
Specification Sheet Downloads
