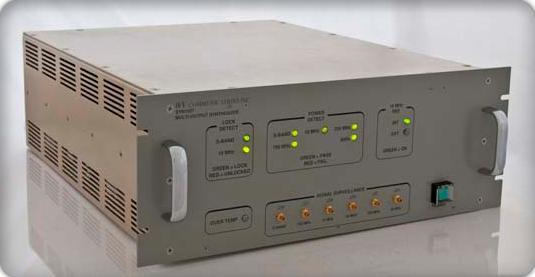

Model Shown:
SYN1006
Click Image to Enlarge
ULTRA LOW PHASE NOISE, DIRECT
- This direct synthesizer exhibits ultra low phase noise and fast switching speed
- Frequency range 0.2 to 36GHz
- Ping Pong between frequencies with fast switching speed <500 nSec
- Ultra low phase noise with noise floor of -175dBc/Hz @ 10KHz from the carrier
- High spectral purity (<80dBc)
- High vibration operation profile
Application
- RADAR
- Electronic warfare
- Homeland security
- Medical systems
RF Characteristic:
| Output frequency range |
DC to 36 GHz |
| Switching speed |
500 nSec typical |
| Output Power |
+15 dBm |
| Spurious Output |
-75dBc Minimum |
Phase noise at 11520MHz Output Signal
| 100Hz |
-97 dBc/Hz |
| 1 kHz |
-117 dBc/Hz |
| 10 kHz |
-132 dBc/Hz |
| 100 kHz |
-137 dBc/Hz |
| 1 MHz |
-137 dBc/Hz |
| Output Impedance |
50Ω Nominal |
| Operation temperature |
-40°C to +70°C |
| Vibration level |
upon customer request |
Specification Sheet Downloads
