Synthesizers

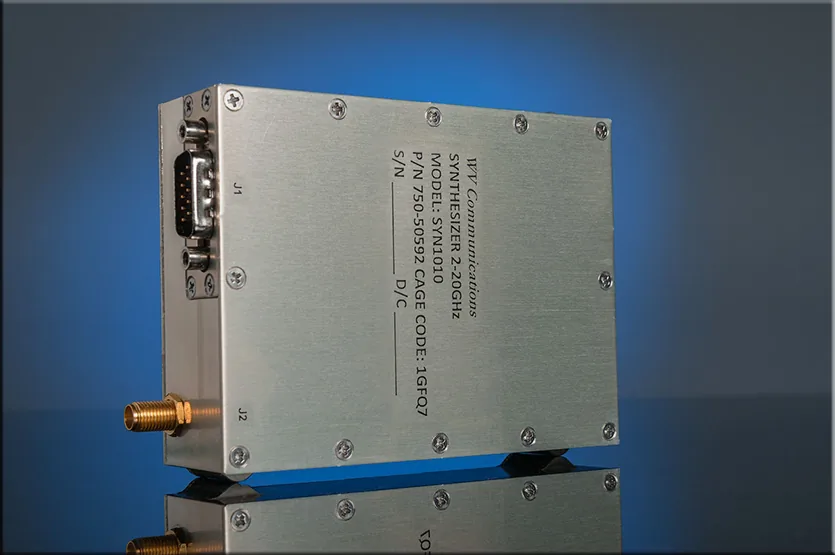

Model Shown:

SYN-1010

Synthesizer
Click Image to Enlarge

Ultra Fast 2-20GHz Synthesizer with Built-in Bidirectional Chirp and Pulse Modulator

Applications
  • RADAR
  • Electronic warfare
  • Homeland security
  • ATE
RF Characteristic:
  • Frequency Stability ±1.10-6 Maximum over -20 to +75°C
  • Fast switching time 8uSec to within 1MHz
  • low phase noise
  • low Spurious content
  • Bi-Directional Chirp Capability at 50MHz/uSec via USB port or High Speed Bus
  • Output Power +14dBm Minimum
  • Output Pulse Modulator
  • Aging
    • 1st year ±1 10-6 Maximum
    • Data Sheet Downloads
